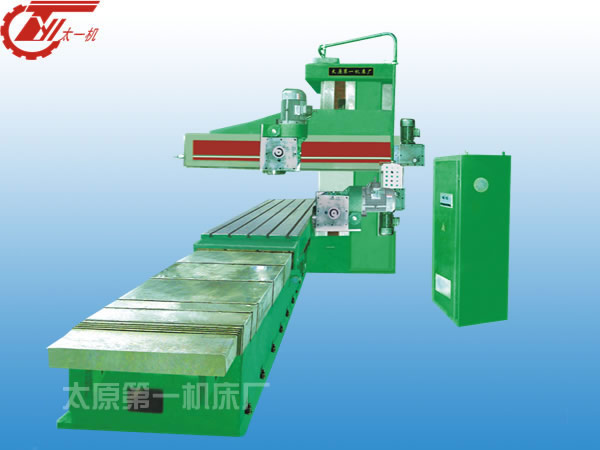

項目Items
|
單位Unit
|
XQ1010
|
XQ1012
|
最大加工尺寸Max.milling size
|
長Length
|
mm
|
3000
|
4000
|
寬Width
|
mm
|
1000
|
1200
|
高Height
|
mm
|
800
|
800
|
機床外型尺寸Overall dimensions
|
長Length
|
mm
|
9982
|
11982
|
寬Width
|
mm
|
2910
|
2910
|
高Height
|
mm
|
2800
|
2800
|
工作臺面積Table area
|
長Length
|
mm
|
3000
|
4000
|
寬Width
|
mm
|
800
|
1000
|
工作臺縱向行程Longitudingal stroke of table
|
mm
|
3300
|
4300
|
工作臺最大承重Max.weight ontable
|
kg
|
4000
|
5000
|
工作臺進給量范圍Range of table feeds
|
mm/min
|
30—594[特供(options)103—618]無級(stepless)
|
工作臺快移速度Rapid traverse speed of table
|
mm/min
|
1500[特供(options)3000]
|
銑頭數量Quantity
|
|
2
|
銑頭主軸前端規格Spindle nose code
|
mm
|
No.50(7:24)
|
銑頭滑軸伸縮尺寸Slide sleeper travel
|
mm
|
+100 -150
|
銑頭主軸轉速Spindle speeds of milling head
|
rpm
|
110,190,250,320,420,700
|
垂直銑頭進給量范圍Feed of vertical milling head
|
mm/min
|
33;170;600
|
側銑頭進給量范圍Feed of side milling head
|
mm/min
|
36;185;655
|
銑頭回轉角度Swing angle of milling head
|
|
±30°(±45°)
|
推蔫刀盤最大真徑Diameter of cutter recommended
|
mm
|
φ120
|
橫梁移動速度Elevating and lowering speed of crossrall
|
mm/min
|
490
|
工作臺電機功率Power of table driving motor
|
kw
|
5.5開關磁阻電機(switching)[7.5調速電機(speed)]
|
垂直銑頭電機功率Power of vertical milling
|
kw
|
5.5
|
側銑頭電機功率Motor power of table
|
kw
|
5.5
|
機床凈重Net Weight
|
kg
|
16200
|
17000
|
