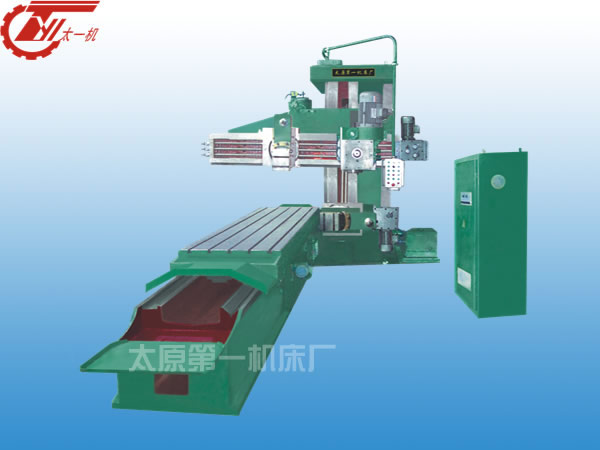

項目Items
|
單位Unit
|
BXQ1310
|
BXQ1312
|
|
最大加工尺寸Max.milling size
|
長Length
|
mm
|
3000 4000 6000
|
|
寬Width
|
mm
|
1000
|
1200
|
|
高Height
|
mm
|
800
|
|
最大加工件重量Max.maching weight
|
kg
|
5000
|
|
工作臺臺面Area of table
|
長Length
|
mm
|
3000 4000 6000
|
|
寬Width
|
mm
|
800
|
1000
|
|
工作臺運行速度Table speed
|
m/min
|
0.07—1.1；0.1—1.6；1.7—26；2.6—40
|
|
銑頭前端規格Spindle nose size of milling head
|
|
No.50（7：24）
|
|
銑頭主軸轉速Spingdle speeds of milling head
|
r/min
|
110，190，250，320，420，700
|
|
銑頭行程（垂直手動）Manual vertical travel
|
mm
|
＋100 －150
|
|
銑頭回轉角度Swing angle of milling head
|
|
±30°
|
|
銑頭沿橫梁進給速度
Cross feed speed
|
mm/min
|
65；320；900
|
|
推蔫刀盤直徑Cutter diameter recommended
|
mm
|
φ120
|
|
刀架回轉最大角度Max.rotary angle of tool post
|
|
±60°
|
|
刨刀桿最大截面Max.section of tool shank
|
mm
|
40×40
|
|
垂直刀架進給量Feed of vertical tool post
|
水平Horizontal
|
mm/stroke
|
0.45—21.6
|
|
垂直Vertical
|
mm/stroke
|
0.30—13.5
|
|
垂直刀架快移速度Rapid travel of vertical tool post
|
水平Horizontal
|
mm/min
|
900
|
|
垂直Vertical
|
mm/min
|
560
|
|
側刀架垂直進給量Vertical feed of side tool post
|
mm/stroke
|
0.30—13.5
|
|
側刀架垂直快移速度Vertical feed of side tool post
|
mm/min
|
840
|
|
銑頭電機功率Motor power of milling head
|
kw
|
5.5
|
|
工作臺電機功率Power of table driving motor
|
kw
|
15
|
|
機床外形尺寸Overall dimensions
|
長Length
|
mm
|
8800 11458 15900
|
|
寬Width
|
mm
|
3080
|
3280
|
|
高Height
|
mm
|
2800
|
|
機床凈重Net weight
|
kg
|
13000 16000 21000
|
15000 18000 23000
|
